Description

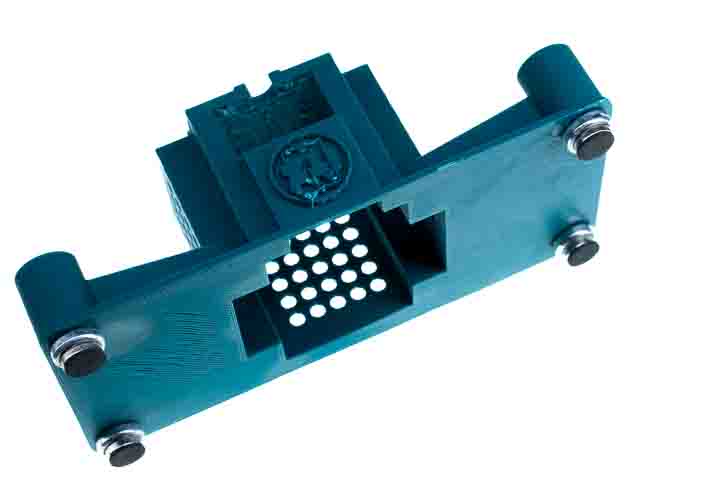

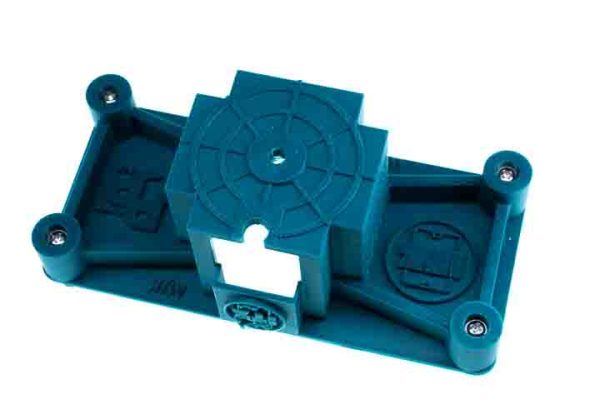

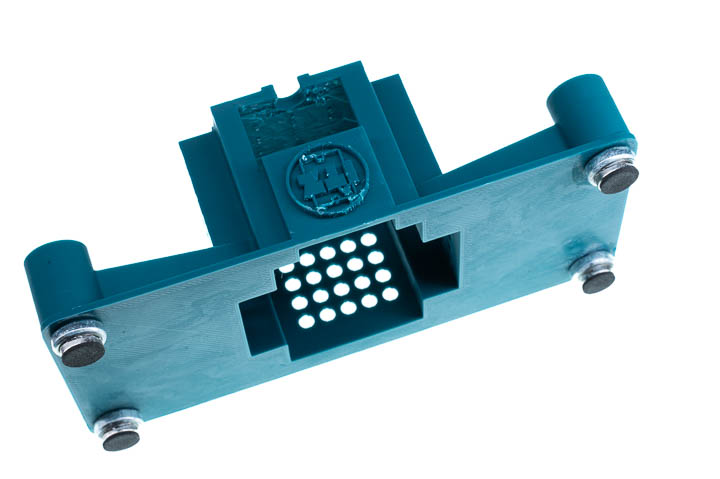

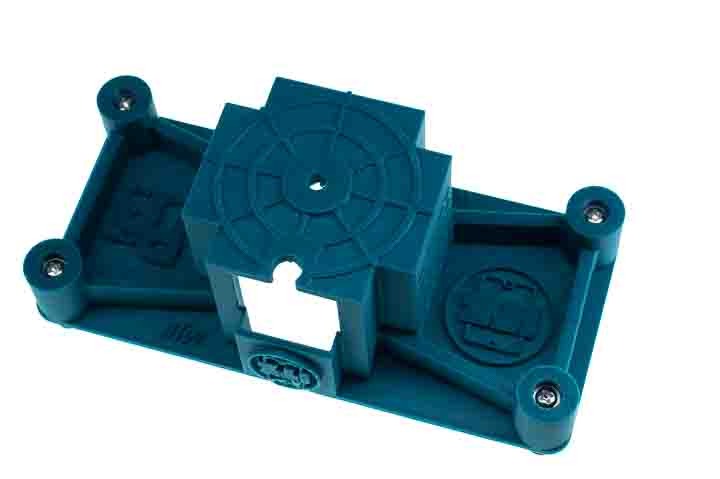

We invest in our hobby…The best boards, bases, and figures, time to make the game even better.  After all, its the game action that we crave so much!  ITZ has been researching and improving board motors for years and we have found the ideal case for our powerful motors.  This case will fit all Super Power Pack (Large) motors and give you a huge performance boost as they are much sturdier and balanced than previous cases.

This item contains everything you need to upgrade your Power Pack I motors.  All the magnets, spring, and knob are included.  This DOES NOT include the motor and will only fit the LARGE Power Pack Motor.

1. Just unscrew the top knob and release the motor from the old case.
2. Feed the cord through the case to completely free the motor from the old case.
3. Save the spring and knob as you will need them to install your motor into the new case.
4. Installation into the new case:
5. Feed the cord through the opening in the new case.
6. Add the spring to the top of the motor (around the long screw that is welded on)
7. Slide the motor into the new case and guide the long screw into the hole on top of the motor case.  It is easiest to do this with the top of the case facing up as the spring will not fall out.
8. Once the motor is seated in the case screw on the black knob.  Tighten it until most of the motor is in the case.
9. Push the cord from the motor into the notch on the top of the case.  This provides tension in case the cord is accidentally pulled.
10. Install the motor and adjust the black knob until the board runs smooth.


    ---
